Misc Windows XP Notes For Desperate People

These notes are historical. You would be foolish to assume anything here works after Windows XP, and really I can’t guarantee this stuff actually works in Windows XP itself. Most is with XP SP3 in mind, but if you’re here you’re not concerned with my faith in my notes being useful.

IE6 Notes

• Force IE6 reinstal, good for when IE6 won’t start or won’t open links after surgically removing malware.
  rundll32.exe setupapi,InstallHinfSection DefaultInstall 132 C:\windows\inf\ie.inf

netsh notes

• This command can manipulate most things network; see netsh /?

• Some malware shows in the Winsock catalog, but a large number of entries are normal and good.
  netsh winsock show catalog

• TCP/Winsock resets - for extreme network/TCP issues
  netsh int ip reset resetlog.txt
netsh winsock reset catalog
  You should reboot and reconfigure networking.

Registry Notes

• REG - lets you query and modify the registry from the command line
  • ADD - Add non-existent keys
    • /v - Value to add
    • /t - Value data type
    • /d - Data to add
    • /f - Force overwrite
  • QUERY - dump keys to stdout
    • /s - recurse

• Enable REGEDIT if it has been disabled through policy
  REG ADD HKCU\Software\Microsoft\Windows\CurrentVersion\Policies\System /v DisableRegistryTools /t REG_DWORD /d 0 /f

• Enable TASKMGR if it has been disabled through policy
  REG ADD HKCU\Software\Microsoft\Windows\CurrentVersion\Policies\System /v DisableTaskMgr /t REG_DWORD /d 0 /f

• Show (network?) printer registry settings
  REG QUERY "HKCU\Printers\Connections\"

• Show Windows User Profile keys
  REG QUERY "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\ProfileList" /s

• Show Outlook profile keys
  REG QUERY "HKCU\Software\Microsoft\Windows NT\Current Version\Windows Messaging Subsystem\Profiles" /s

[!IMPORTANT]
Note the space in “Current Version”

• Show Mapped network drives
  REG QUERY "HKCU\Network" /s

• Show TCPIP parameters rewritten by netsh int ip reset
REG QUERY "HKLM\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\"
REG QUERY "HKLM\SYSTEM\CurrentControlSet\Services\DHCP\Parameters\"

• Show IE6 Internet Zone Settings
  REG QUERY "HKCU\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap" /s
REG QUERY "HKCU\Software\Microsoft\Windows\CurrentVersion\Internet Settings\Zones" /s

• Meaning of bits in key HKLM\Software\Microsoft\Windows NT\CurrentVersion\ProfileList\SID State:

[!NOTE]
This is a bitmask which the explanation of is beyond the scope here, but quickly, in case I do forget: these 32-bit hex numbers represent each of the 32 bits in the DWORD that is the SID State. Each digit represents four bits (a nybble, yes really) and each individual bit’s binary values. The desired options are all bitwise-ORed together into a single 32-bit number.

    #define PROFILE_MANDATORY       0x00000001
    #define PROFILE_USE_CACHE       0x00000002
    #define PROFILE_NEW_LOCAL       0x00000004
    #define PROFILE_NEW_CENTRAL     0x00000008
    #define PROFILE_UPDATE_CENTRAL  0x00000010
    #define PROFILE_DELETE_CACHE    0x00000020
    // do not define bit 40 because NT4 has this defined as Run_SyncApps.
    #define PROFILE_GUEST_USER      0x00000080
    #define PROFILE_ADMIN_USER      0x00000100
    #define DEFAULT_NET_READY       0x00000200
    #define PROFILE_SLOW_LINK       0x00000400
    #define PROFILE_TEMP_ASSIGNED   0x00000800
    // do not define bit 1000, this was used briefly 2009, 2010 before
    #define PROFILE_PARTLY_LOADED   0x00002000
    #define PROFILE_BACKUP_EXISTS   0x00004000
    #define PROFILE_THIS_IS_BAK     0x00008000

Miscellaneous

• Show installed file system minifilters
  fltmc

• Reset Outlook navigation pane window to defaults (For cannot open the outlook window errors)
  outlook.exe /resetnavpane

• Show which tasks control which service
  tasklist /svc

• Start a separate Explorer process
  explorer.exe /separate

• Control Panel Applets. Useful to launch from an admin shell.

Command	Applet
Access.cpl	Accessibility Options
Appwiz.cpl	Add/Remove Programs
Desk.cpl	Display Options
Hdwwiz.cpl	Add New Hardware Wizard (Win 7 - Device Manager)
Inetcpl.cpl	Internet Options
Main.cpl	Mouse Properties
Mmsys.cpl	Sound control panel
Ncpa.cpl	Network Connections (will not work under runas correctly)
Powercfg.cpl	Power Options
Sysdm.cpl	System Properties (computer name, vm file size, remote, etc)
Odbccp32.cpl	ODCB Data Source Administration (Win32)
%windir%\system32\Odbcad32.exe	ODCB Data Source Administrator for 64 bit applications (Win64)
%windir%\SysWOW64\odbcad32.exe	ODBC Data Source Administrator for 32 bit applications (Win64)
Certmgr.msc	Certificate Manager
Ciadv.msc	Indexing Service

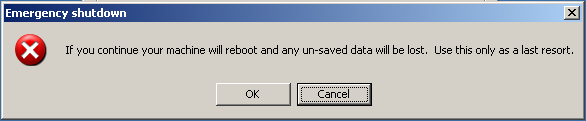

EMERGENCY SHUTDOWN!

Handy for when you don’t want the computer to write anything to the user’s (generally “roaming”) hive/profile before reboot. Otherwise, don’t use this if a normal shutdown is possible!

1. Control+Alt+Delete
2. Control click on “Shut Down…”
3. Click “OK”
